Crystallizers

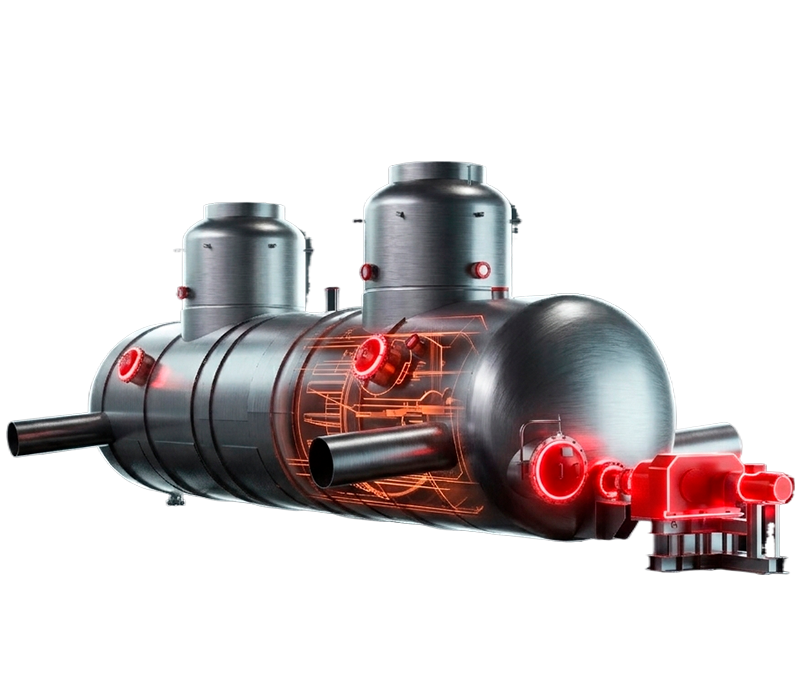

Vacuum crystallizer is designed for KCL crystallization by cooling a hot consentrated solution while boiling it under vacuum and evaporating part of the dissolving liquor.
Basic Technical Specification
| Indicator |
Norm |
|---|---|
|
Operating media characteristics |
|
|
Potassium chloride pump with the content: |
|
|
11-20 |
|
13-17 |
|
5 |
|
до 0,1 |
|
Density of liquid phase, kg/m3 |
1250 |
| Dinamic viscosity, Pas | 0,8 - 2,5х102 |
|
Temperature of parent solution, ℃ |
112 |
|
Temperature of mother solution, ℃ |
20 – 30 |
| Capacity in parent solution, t/hour | 2300 |
|
Pressure
|
discharging 0,2х102 - 5,81х102 |
| Total storage capacity of process vessel, m3 | 160 |
| Work volume, m3 | 110 |
| Process vessel mass, kg | 65000 |
| Process vessel mass in operation condition, kg | 220000 |
| Dimensional specifications, m, not more | |
|
19898 |
|
4080 |
|
6150 |
